WTS-300
Tank control unit with cleaning function
- with integrated tank monitoring system
-
alerting via EMAIL or SMS (optional)
-
extended milking robot remote control
-
remote maintenance (optionally)
|
|
|
|
|
|
Excellent cooling tank control with the most comprehensive functions for the cooling and
cleaning operation - additionally with integrated tank monitor (according to the legal
regulations and requirements of leading
dairies).
The WTS-300 offers everything your cooling tank needs!!
The controller includes:
- The integrated milk temperature control with automatic after-stirring control controls the cooling compressors or ice water pumps and agitator motors in the milk cooling tanks.
|
- The integrated cleaning control offers extensive possibilities for your device for an optimum tank cleaning. When exchanged it replaces completely the old mechanical switch boxes.
|
- The integrated tank monitor complies with the legal regulations of the leading dairies.
|
- Via the integrated milking robot-interface a connected robot (if available) can be directly controlled, without any additional external components.
|
|
|
|
|
The WTS-300 is also available pre-assembled in a solid switch box (IP65) for a wall mounting.
Required contactors for the rinsing pump and the heating are already integrated and completely wired.
The customers can directly connect the device on terminals.
Depending on the design, the required additional modules for the tank monitor function are
already integrated. |
|
|
|
The configuration software WELBA "CONSOFT" is included in the delivery for convenient programming of the controller and later data evaluation.
The software offers the following functions:
- Simple and convenient parameter setting
- Processing and display of tank monitor data
- Display and printing of data in tabular or graphic form
- Storage of tank monitor data (also in CSV format)
- Software update for adding new functions (future-proof)
- REMOTE CONTRL via the Internet or optional remote maintenance modem
- Alarm notification by EMAIL or SMS
|
|
|
|
|
See info folder for detailed information
to the top |
|
Remote maintenance
The remote maintenance of the WTS-300 is basically possible with three options:
- Via the Welba EMAIL- alarm and remote maintenance modem ESIPM-001 *
Remote maintenance is carried out via internet transmission.
- Via the Welba SMS- alarm and remote maintenance modem ESGSM-001 *
Remote maintenance is carried out via wireless transmission.
For the use a standard mobile phone card (SIM-card) with data volume is required.
- A possibly existing PC with installed Teamviewer-Software (e.g. from the robot control) is permanently connected to the WTS-300 via a USB adapter cable *.
|
|
EMAIL- or SMS-alarm
For the EMAIL- or SMS-alarm the corresponding Welba alarm and remote maintenance modem is required. In the event of a fault, alarms can be automatically sent to different phone numbers or email addresses. |
|
SMS status query
With the SMS modem ESGSM-001*, an SMS status query is also possible, with which the current status of the tank can be queried at any time and from any location. (With the EMAIL modem, this would be possible via remote maintenance.)
* see optional accessories |
|
|
Additional components may be required for the full range of functions of the tank control.
- USB adapter cable
- Alarm and remote maintenance modules
- Agitator monitoring module
- I/O expansion modules
- eg.
|
Infos
accessories
|
|
Features |
Milk cooling functions
- Two separate switching stages for con-trolling agitator motor and compressor
- Complete milk cooling control with automatic stirring
- Permanent stirring function
- Different versions of cooling start delay to prevent the milk from freezing
- Target temperature switchover
- Stand-by function
(agitator and compressor off)
- Emergency cooling function in case of sensor failure
- Cooling start by robot or automatically
- Safety temperature sensor (optional)
- Time-controlled target temperature switchover
(forward-looking cooling)
- Alarm in the event of rising water in the circulation line during cooling
- Button for direct operation of butterfly valve
Cleaning functions
- Integrated washing timer
- Robot signal 'Cleaning active'
- Water supply, detergent and disinfectant dosing can be regulated via time, level or quantity-controlled
- Different cleaning programmes
- All running times (heating, pump, detergents) individually adjustable
- Heating temperature adjustable
- Detergent switchover 'acidic/ alkaline'
- Outlet valves programmable as “de-energised open / closed”
- Rinsing and disinfecting function
- Different heating phases during main cleaning
- Subsequent heating function during main circulation
- Venting of cleaning line by means of cleaning pump impulses
- Protection of cleaning pump by optional pressure switch
Tank monitor function
- Real-time clock with date
- Temperature data memory for last 3 months
- Monitoring of temperature evolution during cooling and cleaning
- Complete agitator monitoring (interval, rotating, rotating in milk)
- Simple fitting (just connect)
- Comprehensive fault management - password-protected
- Generation of “Don't take the milk” warning
- “Tank empty“- monitoring after cleaning
- Additional report via configurable alarm relay
- Water in cleaning system during cooling
- Water in cleaning system after draining
- Alarm in the event of power failure (battery protection)
- Alarm notification by EMAIL or SMS
(via optional remote maintenance modem)
Robot interface (for all robot models)
- Robot start/stop button
- Different versions of cooling start delay to prevent the milk from freezing
- time delay
- reduced performance (interval cooling)
- event-controlled (milk pump impulses)
- cooling performance dependent on milk quantity
- Pre-stirring (minimises compr. switching cycles)
- Cleaning clearance by robot
- Cooling start by robot
- Separate button for pneumatic disc valve
Numerous monitoring functions
- Cooling time
- Cleaning temperature
- Sensor monitoring
- Safety switch / Tap contact
- LED display of active processes
- and much more
|
|
|
Connection |
The WTS-300 is universally usable for all types of plants. Relays and digital inputs can be
parameterized for versatile functions.

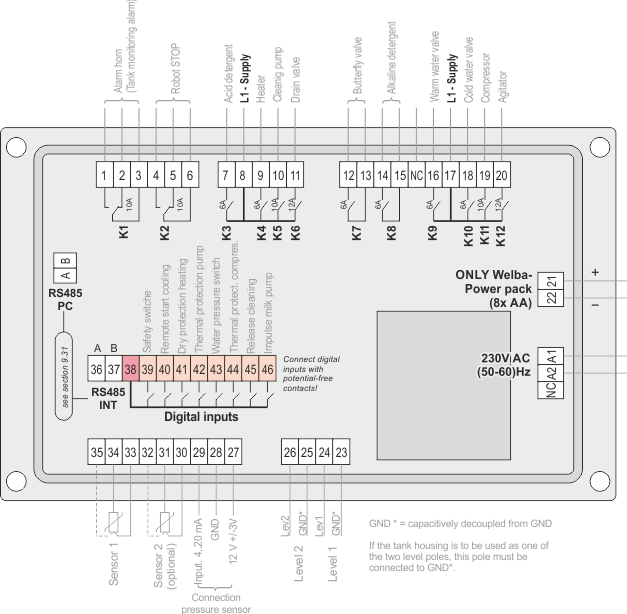

The connection diagram below represents one basic configuration of the inputs and outputs.
The configuration has to be adapted to the corresponding plant when installed. |
|
|
|
Technical data |
Operating voltage
|
230V AC +/-10%, 50/60 Hz |
Relay contacts
|
12 performance relays
expandable by 6 relays ** |
max. switching current |
6 x each 6A AC1 - 250V AC
4 x each 10A AC1 - 250V AC
2 x each 12A AC1 - 250V AC |
max. Strom je Klemme |
12A - 250V AC |
max. switching voltage |
250V AC - 50..60 Hz |
Display
LED switching status displays |
13 mm LED - Display, 4 digits
3 mm |
Display range |
-999 .. 9999 |
Number of Sensors |
1 or 2 |
Sensor input |
KTY 81-210 (optionally PT-100) |
Sensor cable lenght |
2 metres (or as required) |
Measurement range |
-5° .. +95°C |
Temperature resolution |
0,1°C |
Control mode |
two-step controller |
Hysteresis* |
0,1 K .. 99,9 K
(standard adjusting 0,7 K) |
Water detection |
via 2 independent level monitors |
Target temperature T1*
Target temperature T2* |
standard adjusting 8°C
standard adjusting 4°C |
Digital inputs |
8 (via optocoupler)
expandable by 5 digital inputs ** |
Interface |
2 x RS 485 |
Supply ext. pressure sensor
|
12V +/-3V max. 40 mA
|
Connection |
Plug-in screw connections
for cables up to 2.5 mm² |
Housing
- front dimension
- front panel cut out
- insertion depht |
177 x 106 mm
157 x 97 mm
45 mm
|
Protection
- Housing front
- Rear |
IP 64
IP 20
The control is open on the rear, as it is
designed for installation in a closed housing
|
Electrical safety |
Protection class II,
Overvoltage category III, pollution degree I |
Environment specifications:
- Operation temperature
- Storage temperature
- max. humidity |
0° .. +50°C
-20° .. +70°C
75% (no dew)
|
* freely adjustable
** via I/O expansion module ESIO-001 |
|
|
