Housing for wall surface mounting WMG 225 / 305

Fastener

"WMG" housings for wall mounting are provided with four drill holes (4mm diameter).

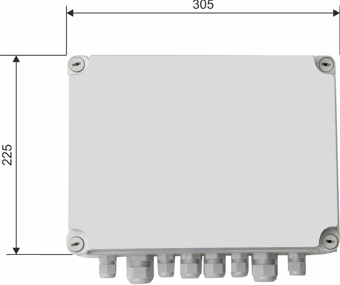

Dimensions

Number and arrangement of the fittings
are different depending on the device.

Technical data

Front measure	305 x 225 mm
Depth	125 mm
Fastener	4 drill holes ø 4 mm
Protection	IP 64
