Ice-bank regulators / level controller EA-100 |
|
|
|
Printed circuit board sealed and watertight
|
|
Waterproof, encapsulated universal device for monitoring a medium with two or three electrodes.
The EA-100 can be used as an ice-bank controller, ice difference controller or level controller.
|
- Printed circuit board sealed and watertight
- Voltage-free two-way switching contact
- Level control alternatively with 3 or 2 electrodes
|
|
| |

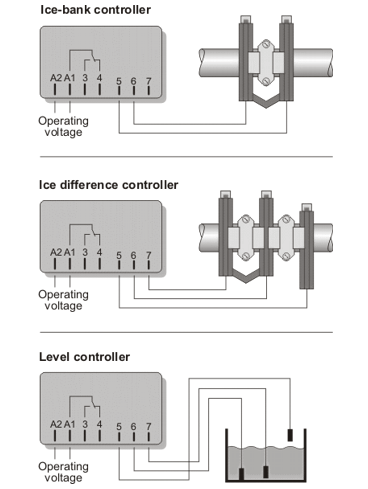

Connection |
|
| |
|
|
| |
Technical data |
|
|
Operating voltage
|
230V AC +/-10%, 50/60 Hz
115V AC +/-10%, 50/60 Hz
24V AC +/-10%, 50/60 Hz |
Relay contact
|
1 voltage-free make-contact |
max. switching current |
10 A AC1 |
max. switching voltage |
250 V ~ |
Measurement signal |
UMess < 20 V AC |
Printed circuit board
- Dimensions
- Fixing |
sealed and watertight
98 x 58 mm
2 drill-holes ø 3,5 mm |
Protection |
IP 60 |
Connection |
Flat plug for terminal ends |
Environment specifications:
- Operation temperature
- Storage temperature |
-20° .. +50°C
-20° .. +70°C
|
|
